PDF File Uploads (JS SDK)

How to create fillable PDF forms from your user’s local PDF files.

​
Overview

The Joyfill SDK is built on the JSON standard (see JoyDoc) instead of the PDF binary file standard. This enables better data storage, parsing, querying and overall developer experience. But in order to achieve this transition from PDF to JSON, we must transform the PDF. In this guide we will show you how to:
  • Convert PDFs to images that can be utilized within JSON.
  • Generate a Joyfill Fillable PDF JSON Template from the original PDF images.
  • Handle underlying PDF update scenarios within existing Joyfill Fillable PDFs.

​
Step 1: PDF Conversion

You can implement your own PDF to Image conversion functionality internally. See recommend functionality below:
  • Add PDF to Image Conversion functionality. We recommend using Convert API. We are not affiliated with them but we are big fans. Convert API provide a wonderful API, enterprise compliance, and affordable pricing.
  • Store those converted images in your own asset service, ie. S3 or something similar.
  • Generate an array of objects that contain the public urls or signing information from the stored images. This information will be utilized to create the Joyfill JSON object.

​
Step 2: JSON Creation

In this step we are going to show you how to utilizes the PDF conversion from Step 1 to create a fillable PDF form that can be used within the Joyfill SDK.

​
Option 1: Joyfill SDK Workflow

This example uses the Joyfill SDK as the starting point for uploading user PDFs. Users can drag and drop or upload PDFs directly inside the of Joyfill SDK using the right panel upload setting.

​
Step 1: Load Joyfill SDK

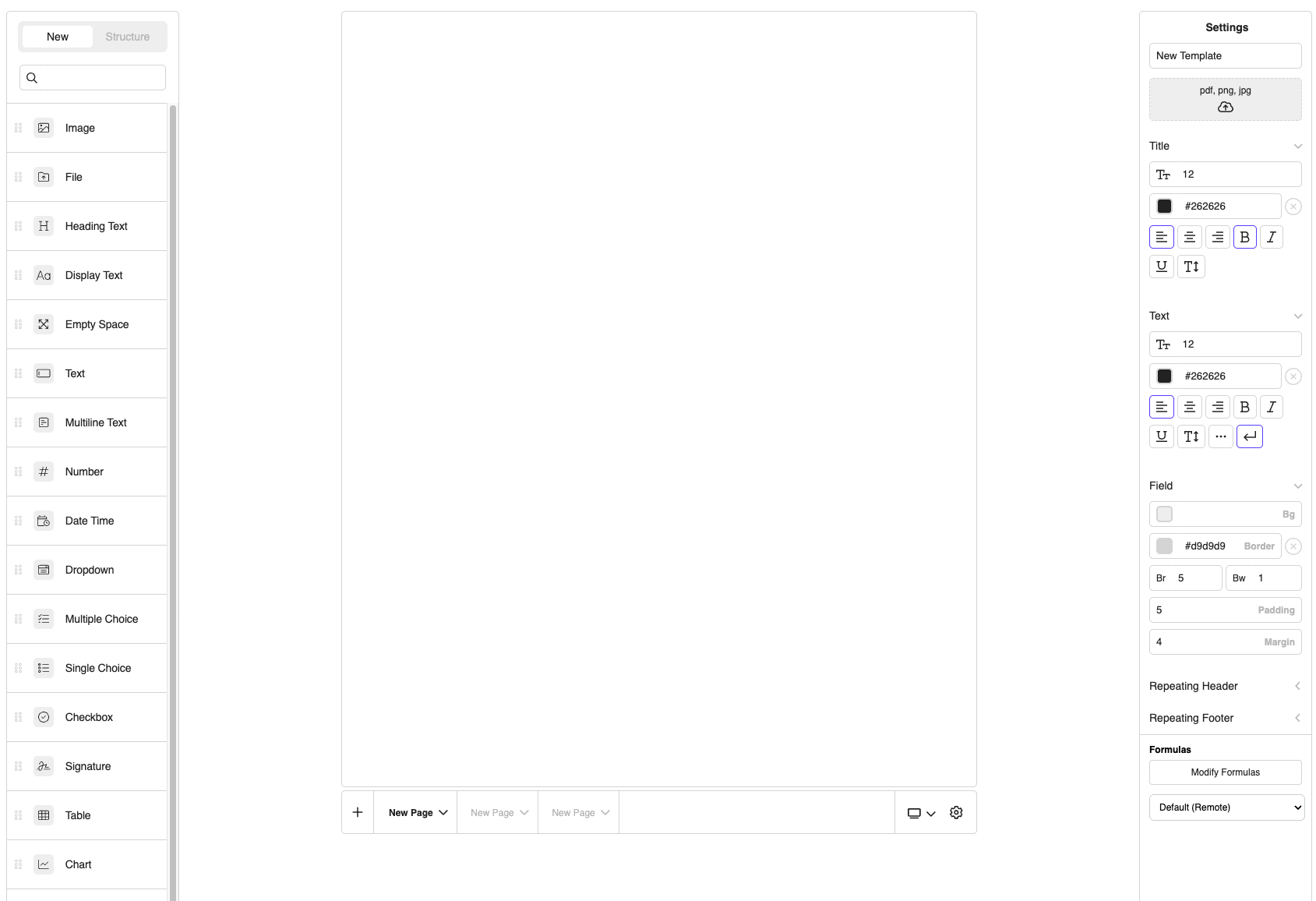

In this step you will send the user directly to the application page that renders the Joyfill SDK. User can then upload their PDF file using upload area in the right side panel settings.

​
Step 2: Handle upload in onUploadAsync

When a user uploads a PDF file through the Joyfill SDK, the onUploadAsync handler is triggered. Your implementation should:
  1. Detect the file type - Check if the uploaded file is a PDF or image
  2. Convert PDF to images - If it’s a PDF, convert each page to an image using the conversion functionality from Step 1: PDF Conversion
  3. Return formatted data - Return a resolved promise containing an array of image URL objects

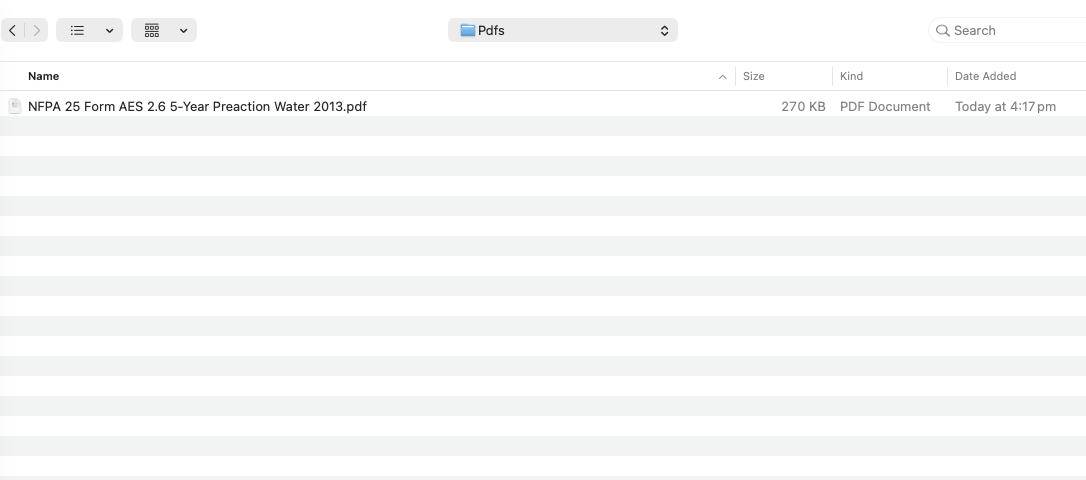

The onUploadAsync handler must return a resolved promise with an array of objects, where each object contains the image URL. Learn more about handling uploads and returning properly formatted data in our PDF, Files, and Image Uploads Guide. Example: When a user uploads a PDF file like this: Your onUploadAsync handler will convert it to images and return the array. Once the SDK receives the properly formatted array of image objects, it will automatically create or update the associated pages in the document: See example usage of onUploadAsync
Important Note: The Joyfill SDK upload allows for both PDF and image file types. Always check the file type inside your onUploadAsync handler to ensure proper handling - PDFs need conversion to images, while image files can be used directly.

​
Option 2: Custom Creation Workflow

This approach uses a custom creation flow to generate the JoyDoc JSON structure before sending users to the Joyfill SDK screen. You can implement this using a modal, button, or any other custom workflow in your application. Using Joyfill Business Solution: You can generate the JoyDoc JSON structure using the Joyfill Business Solution by following these steps:

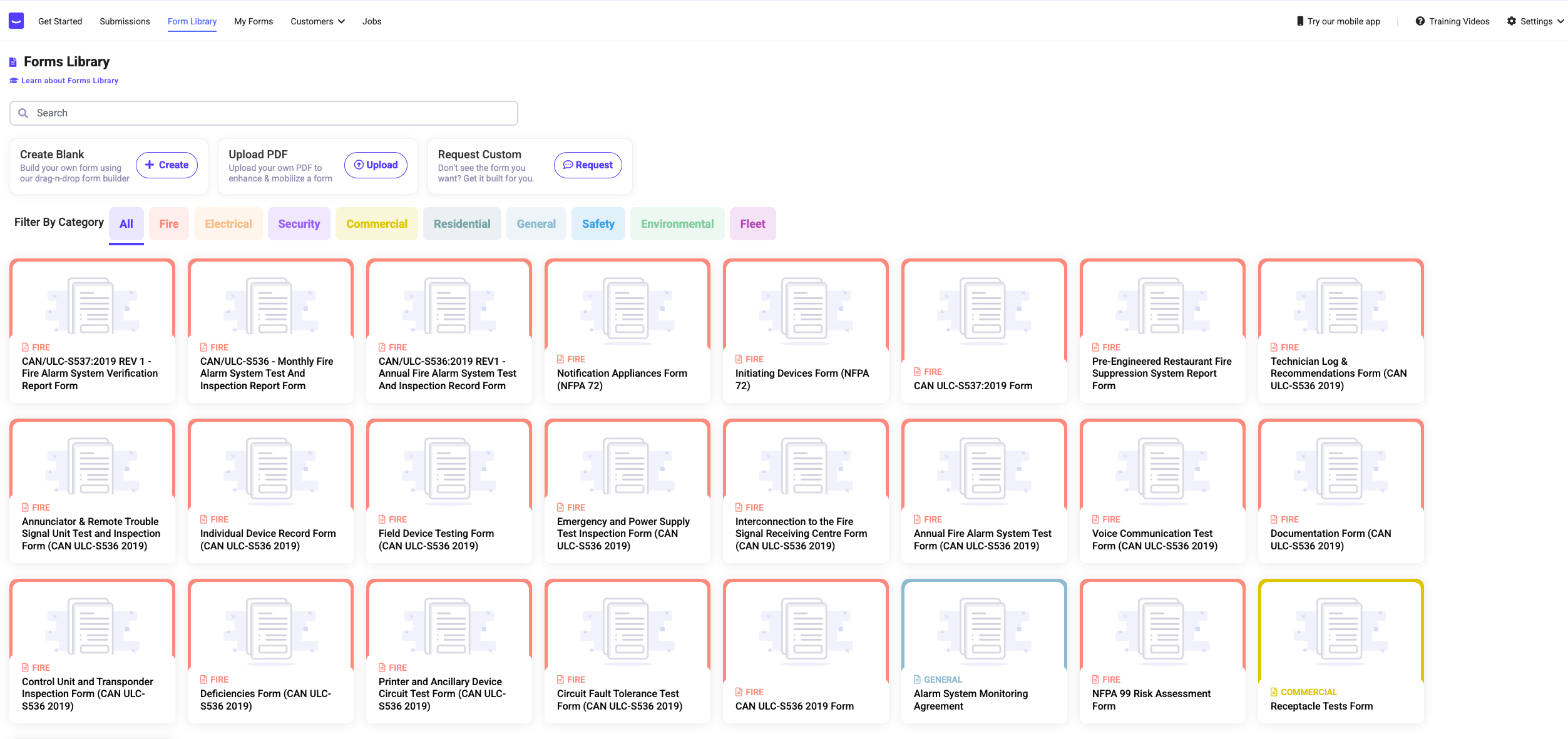

  1. Navigate to the Joyfill Business Solution and open the form library section.

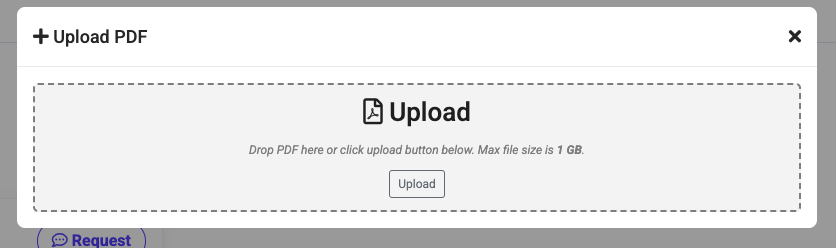

  2. Click the “Upload PDF” button to open the upload modal. Upload PDF Modal
  3. Select and upload your PDF file from your local file system.

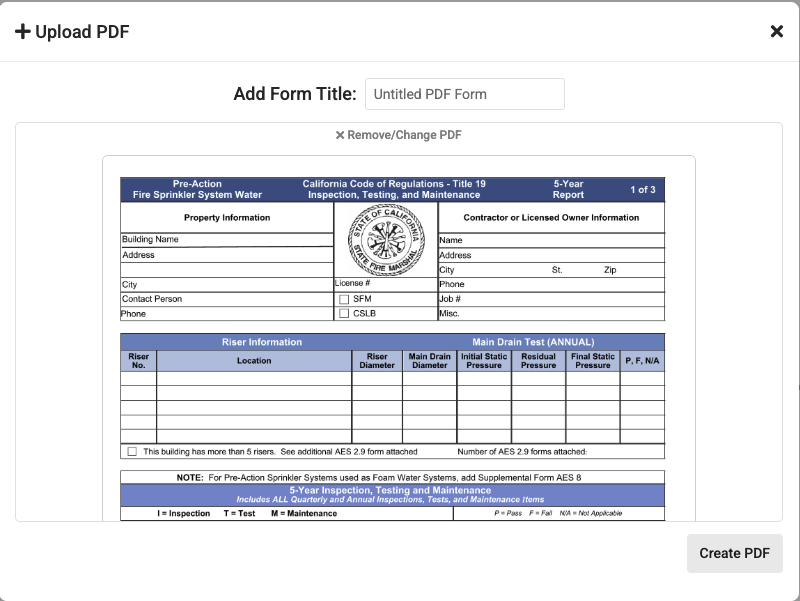

  4. Once uploaded, the system automatically converts the PDF to images and builds the JoyDoc JSON structure. Click the “Create” button to proceed.
  5. You’ll be redirected to the Joyfill SDK screen with the JoyDoc JSON already populated. The PDF pages will appear as background images, ready for you to add form fields and customize.

​
Step 1: Handle File Upload and Conversion

After the user has uploaded a PDF file to your application, you will then need to convert that PDF file into background images using the conversion functionality from Step 1: PDF Conversion.

​
Step 2: Generate JoyDoc JSON Template

In this step we will utilize the Joyfill helper methods and the images from Step 1: PDF conversion, to generate the JoyDoc JSON that can be used within the Joyfill SDK.
import { getDefaultTemplate, getDefaultPage } from '@joyfill/components';

const generateTemplateFromPDF = async (file) => {
	//1. Generate default template
	const template = getDefaultTemplate(); //Template is a Joyfill JSON Object

	//2. Convert PDF to images
	const imageUrls = await convertPDFFromStepOne(file); //imgUrls example: [ { url: String }, {url: String }, ... ];

	//3. Generate a JoyDoc Page for each PDF Page
	const templatePages = [];
	const templatePageOrder = [];

	imageUrls.forEach(({ url }) => {
		const page = getDefaultPage({
			displayType: 'pdf', //Important!
			backgroundImage: url,
		});

		templatePages.push(page);
		templatePageOrder.push(page._id);
	})

	//4. Assign template pages and page order
	template.files[x].pages = templatePages;
	template.files[x].pageOrder = templatePageOrder;

	//5. Return formatted template for use in the Joyfill SDK
	return template;
};

​
Step 3: Joyfill SDK

Now that you have the properly formatted JoyDoc JSON you can pass that directly to the Joyfill SDK to render your form and capture data from your users.
Important Note:When using a custom creation experience we recommend reviewing the update workflows below. You will need to evaluate enabling/disabling update PDF workflows after the the initial creation experience. The update workflows are usually due to users updating the underlying PDF (text, style, images, etc). The update workflows allow your users to swap out the background PDF for the existing form instead of requiring your users to create an entirely new form. Review the below examples for handling the different PDF scenarios after initial creation.

​
Summary

Hopefully from the examples above you have a better idea of how to handle PDFs with Joyfill. You can mix and match these strategies to create your ideal workflow based on your application and user workflows.

​
Support for signed urls

If you are planning on using signed urls, we recommend this approach, then you will want to review our Working With Signed URLs Guide (Coming soon). You can utilize all the above workflows with the signed url approach.
